Баги¶
В этом разделе собираются известные баги и проверенные способы их обхода.
Известные баги¶

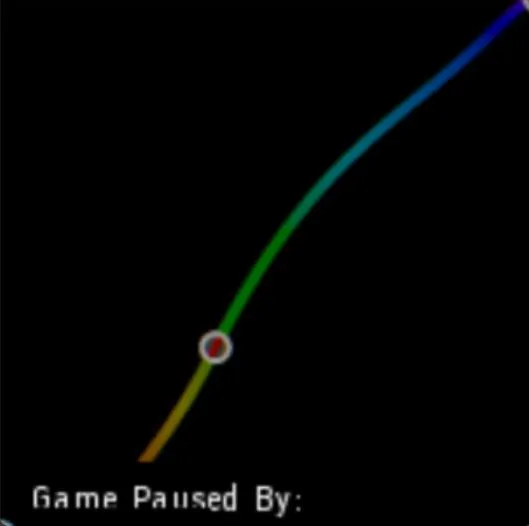

Слева в окне мира появилась странная хрень
Слева в окне мира появилась странная хрень¶
Если у вас появилась эта фигня:
- Запустите отладочную игру на текущей карте.
- Откройте консоль отладки (Нажать ~).
- Введите ) в консоли
После ввода она магически исчезнет. Видимо это шутка разработчиков, раз убрать это можно смайликом.
UI: Исправление элемента выпадающего списка
UI: Исправление элемента выпадающего списка¶
После пересборки любого fla файла с выпадающим списком вы обнаружите, что они перестанут работать (не будут открываться/закрываться).
Связанно это с ошибками в логике action script. Для исправления необходимо заменить содержимое файла по пути:
workspace\gameplay\gui_new\actionscript\red\game\witcher3\controls\W3ScrollingList.as
Исправленное содержимое файла (развернуть)
ActionScript
/***********************************************************************
/** Base scrolling list
/***********************************************************************
/** Copyright © 2013 CDProjektRed
/** Author : Bartosz Bigaj
/***********************************************************************/
package red.game.witcher3.controls
{
import flash.display.MovieClip;
import flash.events.Event;
import flash.events.MouseEvent;
import flash.text.TextField;
import red.game.witcher3.interfaces.IScrollingList;
import red.game.witcher3.managers.InputFeedbackManager;
import red.game.witcher3.utils.CommonUtils;
import scaleform.clik.constants.NavigationCode;
import scaleform.clik.controls.CoreList;
import scaleform.clik.controls.DropdownMenu;
import scaleform.clik.controls.ScrollingList;
import scaleform.clik.core.UIComponent;
import scaleform.clik.events.ListEvent;
import scaleform.clik.constants.InputValue;
import scaleform.clik.events.InputEvent;
import scaleform.clik.ui.InputDetails;
import scaleform.clik.constants.WrappingMode;
import scaleform.clik.controls.ScrollBar;
import scaleform.clik.controls.ListItemRenderer;
import scaleform.clik.controls.ScrollIndicator;
import red.core.constants.KeyCode;
import red.core.events.GameEvent;
//DEBUG
import scaleform.clik.constants.InvalidationType;
import scaleform.clik.interfaces.IListItemRenderer;
import flash.display.DisplayObject;
import scaleform.clik.data.ListData;
[Event(name="change", type="flash.events.Event")]
[Event(name="itemClick", type="scaleform.clik.events.ListEvent")]
[Event(name="itemPress", type="scaleform.clik.events.ListEvent")]
[Event(name="itemRollOver", type="scaleform.clik.events.ListEvent")]
[Event(name="itemRollOut", type="scaleform.clik.events.ListEvent")]
[Event(name="itemDoubleClick", type="scaleform.clik.events.ListEvent")]
public class W3ScrollingList extends ScrollingList implements IScrollingList
{
private var _UpAction : int = 38;
private var _DownAction : int = 40;
private var _PCUpAction : int = 87;
private var _PCDownAction : int = 83;
public var textField : TextField;
public static var REPOSITION : String = "Recalculate position of list items";
public var bAlwaysHandleDirectionActions : Boolean = false;
public var bSkipFocusCheck : Boolean = false;
private var _lastDir : int = 0;
public function W3ScrollingList()
{
super();
}
// Protected Methods:
override protected function configUI():void
{
super.configUI();
addEventListener( InputEvent.INPUT, handleInput, false, 0, true );
}
[Inspectable(defaultValue = 38)]
public function get UpAction():int { return _UpAction; }
public function set UpAction(value:int):void
{
_UpAction = value;
}
[Inspectable(defaultValue = 40)]
public function get DownAction():int { return _DownAction; }
public function set DownAction(value:int):void
{
_DownAction = value;
}
[Inspectable(defaultValue = 87)]
public function get PCUpAction():int { return _PCUpAction; }
public function set PCUpAction(value:int):void
{
_PCUpAction = value;
}
[Inspectable(defaultValue = 83)]
public function get PCDownAction():int { return _PCDownAction; }
public function set PCDownAction(value:int):void
{
_PCDownAction = value;
}
private var _selectOnOver:Boolean = false;
[Inspectable(defaultValue = false)]
public function get selectOnOver():Boolean { return _selectOnOver }
public function set selectOnOver(value:Boolean):void
{
_selectOnOver = value;
}
private var _reverseMouseWheel:Boolean = false;
[Inspectable(defaultValue = false)]
public function get reverseMouseWheel():Boolean { return _reverseMouseWheel }
public function set reverseMouseWheel(value:Boolean):void
{
_reverseMouseWheel = value;
}
public function clearLastDir()
{
_lastDir = 0;
}
public function getLastDir() : int
{
return _lastDir;
}
public function get TotalRenderers() : int
{
return _totalRenderers;
}
public function get numRenderers() : int
{
if (_renderers)
{
return _renderers.length;
}
return 0;
}
public function clearRenderers() : void
{
var i:int;
for (i = 0; i < _renderers.length; ++i)
{
cleanUpRenderer(_renderers[i]);
if (_renderers[i] is W3DropdownMenuListItem)
{
(_renderers[i] as W3DropdownMenuListItem).clearRenderers();
}
(_renderers[i] as UIComponent).parent.removeChild(_renderers[i] as UIComponent);
}
_renderers.length = 0;
_totalRenderers = 0;
}
public function GenerateRenderers():void
{
clearRenderers();
var i:int;
var curY:int = 0;
for (i = 0; i < dataProvider.length; ++i)
{
var currentRenderer:ListItemRenderer = createRenderer(i) as ListItemRenderer;
if (currentRenderer)
{
addChild(currentRenderer);
currentRenderer.enabled = true;
currentRenderer.y = curY;
currentRenderer.index = i;
curY += currentRenderer.height;
currentRenderer.setData(dataProvider[i]);
_renderers.push(currentRenderer);
currentRenderer.validateNow();
++_totalRenderers;
}
else
{
trace("GFX - W3ScrollingList failed to generate a renderer");
}
}
}
public var ignoreHeightForRendererCreation:Boolean = false;
override protected function calculateRendererTotal(width:Number, height:Number):uint
{
var value:uint = super.calculateRendererTotal(width, height);
if (ignoreHeightForRendererCreation)
{
return dataProvider ? dataProvider.length : NaN;
}
return value;
}
public function ShowRenderers(value:Boolean):void
{
var renderer:ListItemRenderer;
var i : int;
visible = value;
for ( i = 0; i < Math.min(_dataProvider.length,_totalRenderers); i++ )
{
renderer = getRendererAt(i) as ListItemRenderer;
if ( renderer )
{
renderer.visible = value;
}
}
if (_dataProvider)
{
for ( i = _dataProvider.length; i < _totalRenderers; i++ )
{
var mc : MovieClip;
mc = getRendererAt(i) as MovieClip;
if ( mc )
{
mc.visible = false;
}
}
}
if (textField)
{
UpdateEmptyStateFeedback( (_dataProvider.length < 1) );
}
}
public function UpdateEmptyStateFeedback( value : Boolean )
{
if ( value )
{
textField.htmlText = "[[panel_journal_quest_empty_description]]";
textField.visible = true;
}
else
{
textField.visible = false;
}
}
public function moveUp(allowWrap:Boolean = true):void
{
var renderer:ListItemRenderer;
var nextLeftIndex = -1;
var i:int;
for (i = selectedIndex - 1; i >= 0; --i)
{
renderer = getRendererAt(i) as ListItemRenderer;
if (!renderer || renderer.enabled)
{
nextLeftIndex = i;
break;
}
}
if (selectedIndex == -1)
{
selectedIndex = scrollPosition + _totalRenderers - 1;
}
else if (nextLeftIndex != -1)
{
selectedIndex = nextLeftIndex;
}
else if (wrapping == WrappingMode.STICK)
{
// Nothing.
}
else if (wrapping == WrappingMode.WRAP && allowWrap)
{
for (i = _dataProvider.length - 1; i >= 0; --i)
{
renderer = getRendererAt(i) as ListItemRenderer;
if (!renderer || renderer.enabled)
{
selectedIndex = i;
break;
}
}
updateSelectedIndex();
if (renderer != null)
renderer.invalidate();
CheckSubListSelection();
}
else
{
//selectedIndex = -1;
return;
}
validateNow();
var dropRenderer:W3DropdownMenuListItem = getRendererAt(selectedIndex) as W3DropdownMenuListItem;
if (dropRenderer && dropRenderer.isOpen())
{
dropRenderer.SelectLastSubListItem();
}
renderer = getRendererAt(selectedIndex) as BaseListItem;
dispatchIndexChanged(selectedIndex, renderer);
}
public function moveDown(allowWrap:Boolean = true):void
{
var renderer:ListItemRenderer;
var nextRightIndex = -1;
var i:int;
for (i = selectedIndex + 1; i < _dataProvider.length; ++i)
{
renderer = getRendererAt(i) as ListItemRenderer;
if (!renderer || renderer.enabled)
{
nextRightIndex = i;
break;
}
}
if (_selectedIndex == -1)
{
selectedIndex = 0;
}
else if (nextRightIndex != -1)
{
selectedIndex = nextRightIndex;
}
else if (wrapping == WrappingMode.STICK)
{
// Nothing
}
else if (wrapping == WrappingMode.WRAP && allowWrap)
{
// To properly supporting wrapping with 1 dropdown item
if (selectedIndex == 0)
{
var dropdownRenderer:W3DropdownMenuListItem = getRendererAt(0) as W3DropdownMenuListItem;
if (dropdownRenderer && dropdownRenderer.selectedIndex != -1)
{
dropdownRenderer.SelectSubListItem( -1);
}
}
else
{
for (i = 0; i < _dataProvider.length; ++i)
{
renderer = getRendererAt(i) as ListItemRenderer;
if (!renderer || renderer.enabled)
{
selectedIndex = i;
break;
}
}
updateSelectedIndex();
}
}
validateNow();
renderer = getRendererAt(selectedIndex) as BaseListItem;
dispatchIndexChanged(selectedIndex, renderer);
}
override public function handleInput(event:InputEvent):void
{
if ( event.handled || (!bSkipFocusCheck) && (!focused && focusable) )
{
trace("FOCUS W3SL HI focused "+focused+" focusable "+focusable+" and return !!!");
return;
}
var details:InputDetails = event.details;
var keyPress:Boolean = (details.value == InputValue.KEY_DOWN || details.value == InputValue.KEY_HOLD);
var i:int;
var oldSelection:int;
var renderer:UIComponent = getRendererAt(_selectedIndex, _scrollPosition) as UIComponent;
if (!(renderer is IListItemRenderer))
{
renderer = null;
}
if (renderer != null) {
renderer.handleInput(event); // Since we are just passing on the event, it won't bubble, and should properly stopPropagation.
if (event.handled) { return; }
}
if ((details.code == KeyCode.PAD_DIGIT_DOWN || KeyCode.PAD_DIGIT_UP || details.code == KeyCode.PAD_DIGIT_LEFT || details.code == KeyCode.PAD_DIGIT_RIGHT) &&
details.code != UpAction && details.code != DownAction && details.code != PCUpAction && details.code != PCDownAction)
{
return;
}
switch( details.code )
{
case UpAction:
case PCUpAction:
if (keyPress)
{
_lastDir = -1;
oldSelection = selectedIndex;
moveUp(details.value != InputValue.KEY_HOLD);
if (oldSelection != selectedIndex)
{
renderer = getRendererAt(selectedIndex) as BaseListItem;
dispatchIndexChanged(selectedIndex, renderer);
event.handled = true;
}
//corner case when the first renderer was unable to select but we should scroll up to it
if ( oldSelection == 1 && selectedIndex == 1 )
scrollPosition = 0;
}
break;
case DownAction:
case PCDownAction:
if (keyPress)
{
_lastDir = 1;
oldSelection = selectedIndex;
moveDown(details.value != InputValue.KEY_HOLD);
if (oldSelection != selectedIndex)
{
renderer = getRendererAt(selectedIndex) as BaseListItem;
dispatchIndexChanged(selectedIndex, renderer);
event.handled = true;
}
}
break;
case KeyCode.LEFT:
case KeyCode.RIGHT:
break;
default:
return;
}
}
private function dispatchIndexChanged(index:int, renderer:UIComponent)
{
if (renderer is BaseListItem)
{
var baseListItemRenderer:BaseListItem = renderer as BaseListItem;
dispatchEvent( new ListEvent( ListEvent.INDEX_CHANGE, true, false, index, -1, -1, renderer as IListItemRenderer, baseListItemRenderer ? baseListItemRenderer.data : null ) );
}
else if (renderer is DropdownMenu)
{
var dropdownMenuRenderer:DropdownMenu = renderer as DropdownMenu;
dispatchEvent( new ListEvent( ListEvent.INDEX_CHANGE, true, false, index, -1, -1, renderer as IListItemRenderer, dropdownMenuRenderer ? dropdownMenuRenderer.data : null ) );
}
else
{
dispatchEvent( new ListEvent( ListEvent.INDEX_CHANGE, true, false, index, -1, -1, null, renderer ) );
}
}
override protected function updateScrollBar():void
{
if (_scrollBar == null) { return; }
if ( _dataProvider.length <= _totalRenderers )
{
scrollBar.visible = false;
}
else
{
scrollBar.visible = true;
}
var max:Number = Math.max(0, _dataProvider.length - _totalRenderers);
if (_scrollBar is ScrollIndicator) {
var scrollIndicator:ScrollIndicator = _scrollBar as ScrollIndicator;
scrollIndicator.setScrollProperties(_totalRenderers, 0, _dataProvider.length-_totalRenderers);
} else {
// Min/max
}
_scrollBar.position = _scrollPosition;
_scrollBar.validateNow();
}
override protected function populateData(data:Array):void
{
super.populateData(data);
ShowRenderers(true);
stage.dispatchEvent(new Event(W3ScrollingList.REPOSITION));
}
public function updateData(data:Array):void
{
if ( !data )
{
return;
}
populateData(data);
invalidateData();
}
override protected function drawLayout():void
{
super.drawLayout();
stage.dispatchEvent(new Event(W3ScrollingList.REPOSITION));
}
override public function toString():String
{
return "[W3 W3ScrollingList "+ this.name+" ]";
}
public function getRenderers():Vector.<IListItemRenderer>
{
return _renderers;
}
public function GetDropdownListHeight() : Number
{
var tempHeight : Number = 0;
var tempItemRenderer : BaseListItem;
for (var i : int = 0; i < dataProvider.length; i++ )
{
tempItemRenderer = getRendererAt(i) as BaseListItem;
if( tempItemRenderer )
{
tempHeight += tempItemRenderer.actualHeight;
}
else
{
//trace("DROPDOWN "+this+" updatePosition here is crush i "+i);
}
}
return tempHeight
}
override protected function dispatchItemEvent(event:Event):Boolean
{
if (selectOnOver && event.type == MouseEvent.ROLL_OVER)
{
var targetRenderer:IListItemRenderer = event.currentTarget as IListItemRenderer;
if (targetRenderer)
{
trySelectingIndex( targetRenderer.index );
}
}
if (event.type == MouseEvent.DOUBLE_CLICK)
{
// bubble it
var renderer:IListItemRenderer = event.currentTarget as IListItemRenderer;
var newEvent:ListEvent = new ListEvent(ListEvent.ITEM_DOUBLE_CLICK, true, true, renderer.index, 0, renderer.index, renderer, dataProvider.requestItemAt(renderer.index), 0, 0, false);
return dispatchEvent(newEvent);
}
else
{
return super.dispatchItemEvent(event);
}
}
public function trySelectingIndex( index : int )
{
selectedIndex = index;
}
override public function set selectedIndex(value:int):void
{
if (value == _selectedIndex || value == _newSelectedIndex)
{
return;
}
// #J not ideal way to handle this but what can you do :S
if (this is W3DropDownList)
{
var currentRenderer:W3DropdownMenuListItem = getRendererAt(value) as W3DropdownMenuListItem;
if (currentRenderer && !currentRenderer.isOpen())
{
dispatchEvent(new GameEvent(GameEvent.CALL, "OnPlaySoundEvent", ["gui_global_highlight"]));
}
}
else
{
dispatchEvent(new GameEvent(GameEvent.CALL, "OnPlaySoundEvent", ["gui_global_highlight"]));
}
super.selectedIndex = value;
}
override protected function handleMouseWheel(event:MouseEvent):void
{
if ( reverseMouseWheel )
{
scrollList(event.delta < 0 ? 1 : -1);
}
else
{
scrollList(event.delta > 0 ? 1 : -1);
}
}
public function CheckSubListSelection() : void { }
override public function set focused(value:Number):void
{
super.focused = value;
trace("FOCUS @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@");
trace("FOCUS W3SL " + this.name+" focused " + value);
trace("FOCUS @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@");
}
override protected function updateSelectedIndex():void
{
var renderer:ListItemRenderer = getRendererAt(_newSelectedIndex, scrollPosition) as ListItemRenderer;
if ( renderer != null && !renderer.selectable )
return;
super.updateSelectedIndex();
}
}
}
Баг UV развертки при импорте mesh
При импорте mesh может возникнуть баг, швы на некоторых частях модели. Даже если ничего не изменилось и вы просто экспортировали и снова импортировали модель в движок.

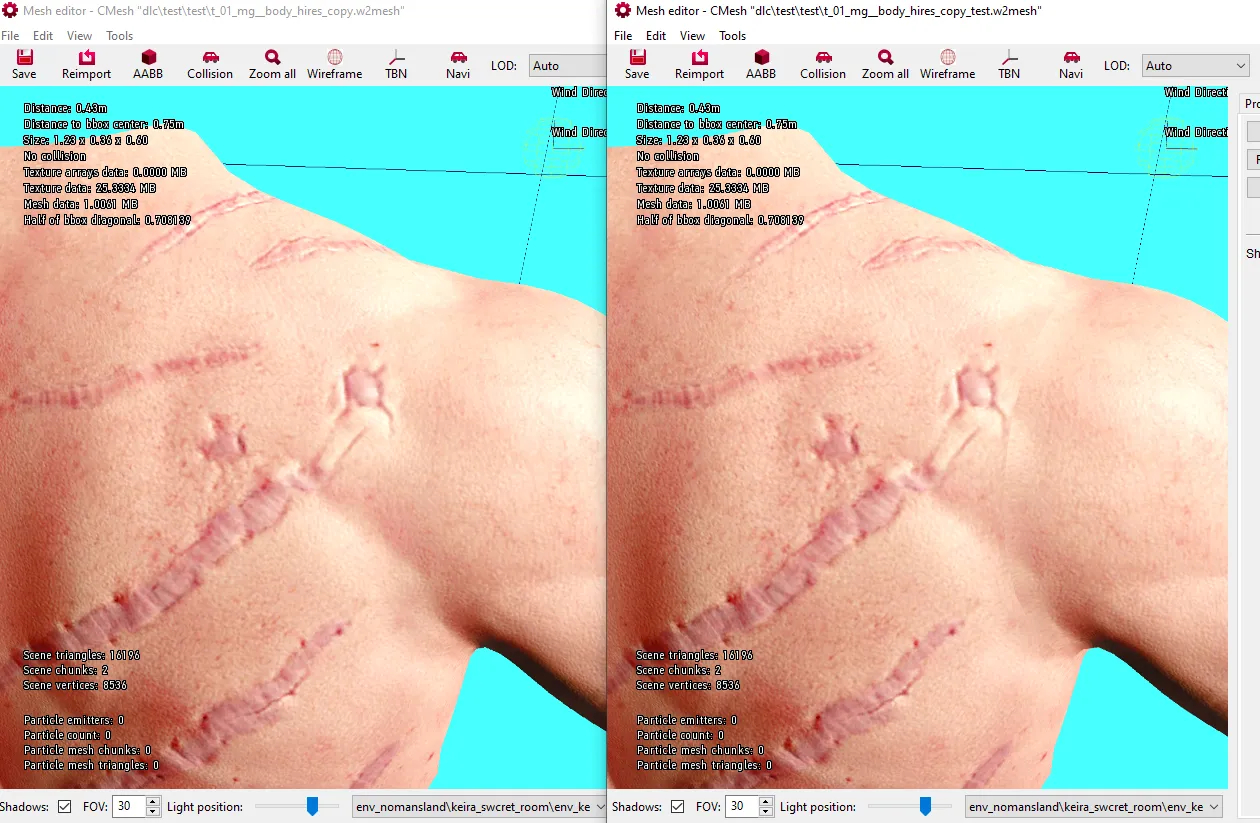

Пример на плече Геральта:
Решение этого бага оказалось не таким простым, подробнее прочитать тут....
